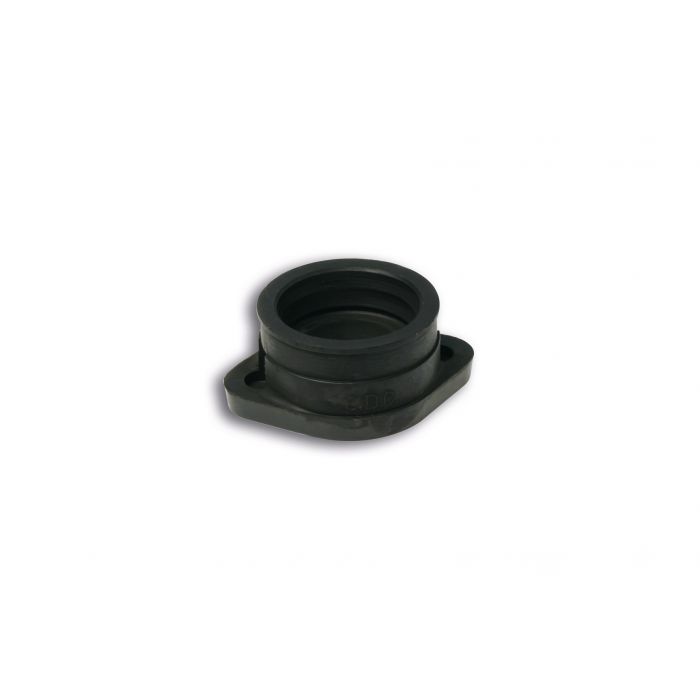

GUMIJASTO RAVNO SESALNO KOLENO Ø 22 medosje 56 PHBL 21-22
INTAKE MANIFOLDS
Intake manifold conveys the air-fuel mixture to the engine by means of
reed valve.
The total efficiency of an engine is calculated as the product of various partial efficiencies, such as:
- volumetric efficiency
- thermodynamic efficiency
- mechanical efficiency
Volumetric efficiency is the ratio between the quantity of fuel that can enter the combustion chamber and the displacement of the engine.
One of the main factors affecting volumetric efficiency is loss
due to friction that the fluid encounters (air-fuel mix) when feeding from
the air filter to the combustion chamber. Therefore, one of the components
that greatly influences this loss is the intake manifold, since
all of the mix has to travel through it with the minimum possible loss
. For this reason, sudden increases in section and corners along the mix
path must absolutely be avoided.
The intake manifold also acts as an accumulation tank for the
fresh load , since the mix, travelling at a certain speed,
requires time to stop when the reed valve closes. Therefore, mix collects
in the manifold and exerts pressure against the reeds. For this reason,
each manifold has a well-defined range of revolutions within which it
provided maximum efficiency (tuned manifold).
In addition, the manifold supports the carburettor by connecting
it to the engine casing or to the cylinder , damping vibrations
between casing and carburettor and preventing emulsion of gas and air in
the carburettor tank.
This apparently simple component therefore requires a great deal
of study in order to take full advantage of all of its qualities.
Malossi engineers have achieved this to perfection. Malossi, with
decades of experience in engine fuelling systems, has created a new line
of manifolds in rubber and aluminium alloy for the new generation of
scooters, and has tested and developed the line on roads and race
tracks.
Malossi rubber manifolds feature a composite structure. Their
construction begins with an aluminium insert that is encased in a
special plastic material that is impervious to oils and fuels,
guaranteeing increased rigidity at the point of attachment to the casing
and greater flexibility of the manifold body.
KAWASAKI |
Material |
INTER-AXIS |
Ø hole |
Ø manifolds |
Ø inlet |
total length |
carburettors applications |
Note |
02 1134 |
NBR | 58 | 6,25 | 32 | 44 - 2 grooves | 33 | PHF 32B - PHBE 32B |
Straight misaligned - 4 mm side |
02 1135 |
NBR | 58 | 6,25 | 32 | 44 - 2 grooves | 33 | PHF 32B - PHBE 32B | Straight |
Standard |
Material |
INTER-AXIS mm |
Ø hole |
Ø manifolds |
Ø inlet |
total length |
carburettors applications |
Note |
02 1325 |
NBR | 56->61 | 6 | 20 | 25 - 1 groove | 23,5 | PHBG 19-20 B | Straight |
Standard |
Material |
INTER-AXIS mm |
Ø hole |
Ø manifolds |
Ø inlet |
total length |
carburettors applications |
Note |
02 1333 |
NBR | 56->61 | 6 | 22 | 31 - 1 groove |
23,5 |
PHBL 121-22 B |
Straight |
02 1354B |
NBR |
56->61 |
6 |
36 |
40 - 1 groove |
23,5 |
PHBE 36 P |
Straight |
Standard |
Material |
INTER-AXIS mm |
Ø hole |
Ø manifolds |
Ø inlet |
total length |
carburettors applications |
Note |
02 1362 |
NBR | 56->61 | 6 | 36 | 44 - 2 grooves | 23,5 | PHBE 36 B - PHF 36 B | Straight |
