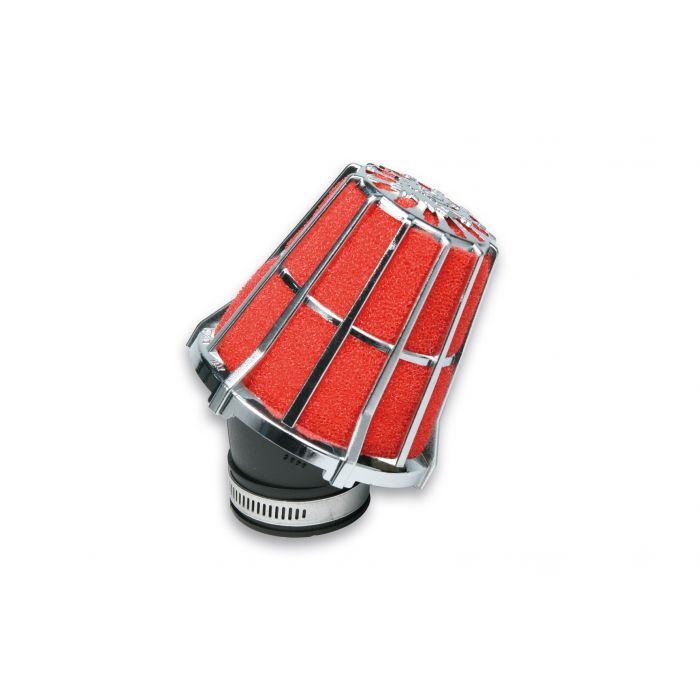

RED FILTER E5 Ø 38 PHBL 20÷25 CHROMED

27,63 € 22,65 €
DOBAVLJIVO
SKU
043296.K0
Ste našli isti Malossi izdelek ceneje? Mi vam ceno izenačimo!
Kontaktirajte nas

RED FILTER more oxygen to the engine

The quality which confirms success


Too often we neglect the simplest and most obvious component of our engine, whereas minor modifications increase efficiency, improve performance and extend service life of the engine.
Let's consider for instance the fuel system, which supplies the "burst" of air and petrol that is closely related to the engine's performance.
The filter task is of vital importance. In fact, on one hand it must prevent any impurity (which could cause serious damage in short time) from getting into the engine; on the other hand it must allow for the best possible breathing without suffocating the engine.
These contradicting tasks can only be unified with a first quality filter, which is the result of careful studies, Malossi experience, and the use of premium materials.
Therefore, it is not by chance that all the best manufacturers start with the filter design, which is the first component in the engine's "respiratory sequence", in order to achieve the highest engine performance suitable for racing.
Undisputed leader both in racing scooter engine preparation and defining special fuel systems, Malossi has had the chance to fine tune the best scooter filter ever produced.
Its name is RED FILTER and it is characterised by a very light and removable reticular structure and by a filtering component made of expanded polyurethane with open cells, self extinguishing and with a large accumulation capacity.
This filter can be fitted to any scooter in a few minutes because it is equipped with special connections, which allow fitting it in the best possible position. Its conduit and surfaces have been expressly designed to achieve the best possible performance for any model of scooter. Also it guarantees consistency and high performance.
After having carried out the necessary and simple periodic cleaning operations, RED FILTER guarantees always-perfect engine breathing, making the engine itself more long-lived.
The benefits concerning environmental pollution must not be neglected: an engine which breaths better is also an engine that pollutes and consumes less.


E5 air filter

E5 air filter with filtering component made of red expanded polyurethane for 50 cc scooters.
It is suitable for any CARBURETTOR from Ø 12 to Ø 30.
Also available with chrome-plated silencer cup.
Shape: sleek, aerodynamic and compact.
Construction: Web structure, lightweight and removable.
Filtering component made of expanded polyurethane with open cells, self extinguishing and with a big accumulation; pipes and surfaces have been expressly calculated.
E5 is pre-eminently an air-horn filter; therefore it has two special qualities: the one of air intake (Venturi) and the one of air filter.





30° INCLINED FILTERS

Fastening: centered - clamp

.C0 : Filter with black cup

.W0 : Filter with chromed cup

.K0 : Chromed filter

.50 : Black filter

E5filter

Code


Ø Inlet mm

A

Dimension mm

E

Carburettor

Filters recommended for Scooter 50 with ORIGINAL CARBURETTOR - EXCEPT PEUGEOT

04 7593

.C0 - .W0 - .K0 - .50

38 128

Dell'Orto PHVA ø 12-14 ÷ 16-17,5

Dell'Orto PHBN ø12-14 ÷ 16-17,5

Mikuni

Filter recommended for per Scooter 50 with ORIGINAL CARBURETTOR - FOR PEUGEOT

0411299

.K0 - .50

28 115

Gurtner PA 325 HD 21

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 3296

.C0 - .W0 - .K0 - .50

38 115

Dell'Orto PHBL ø 20÷25

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 9424

.C0 - .W0 - .K0

41 128

Dell'Orto PHVB

Filters recommended for DIFFERENT APPLICATIONS

04 3075

.C0 - .K0 - .50

48 119

Dell'Orto PHF ø 30÷36

Filters recommended for DIFFERENT APPLICATIONS

04 3077

.C0 - .W0 - .50

52 119

Dell'Orto PHM ø 38÷41

Filters recommended for DIFFERENT APPLICATIONS

04 3270

.50

42 119

Dell'Orto PHBH ø 26÷30





STRAIGHT FILTERS

Fastening: off-set - clamp

.C0 : Filter with black cup

.W0 : Filter with chromed cup

.K0 : Chromed filter

.50 : Black filter

E5filter

Code


Ø Inlet mm

A

Dimension mm

E - D

Carburettor

Filters recommended for Scooter 50 with ORIGINAL CARBURETTOR - EXCEPT PEUGEOT

04 2419

.C0 - .50

35 90 - 7

Dell'Orto PHVA ø 12

Mikuni VM ø 19÷22

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 2411

.C0 - .50

38 90 - 7

Dell'Orto PHBL ø 20÷25

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 2412

.C0 - .W0 - .K0 - .50

32 90 - 9,25

Dell'Orto PHBG ø15÷21

Mikuni

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 2414

.50

53 90 - 3,5

Mikuni

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 2415

.50

50 90 - 6

Mikuni

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 2416

.50

44 90 - 4,25

Mikuni VM ø 24÷28

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 3074

.C0 - .W0 - .50

32x1,25 90 - 9,25

Dell'Orto PHBG/A ø15÷21   (Fastening: off-set - threaded)

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 7729

.C0 - .W0 - .K0 - .50

43 102 - 4

Dell'Orto PHBL ø 25

Filters recommended for DIFFERENT APPLICATIONS

04 2413

.50

55 90 - 3,5

Mikuni

Filters recommended for DIFFERENT APPLICATIONS

04 2418

.50

40 90 - 4,25

Mikuni



Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use

SKU Naziv
043380Bblack cap for e5 air filters
0411383Bchrome cap for e5 air filters
