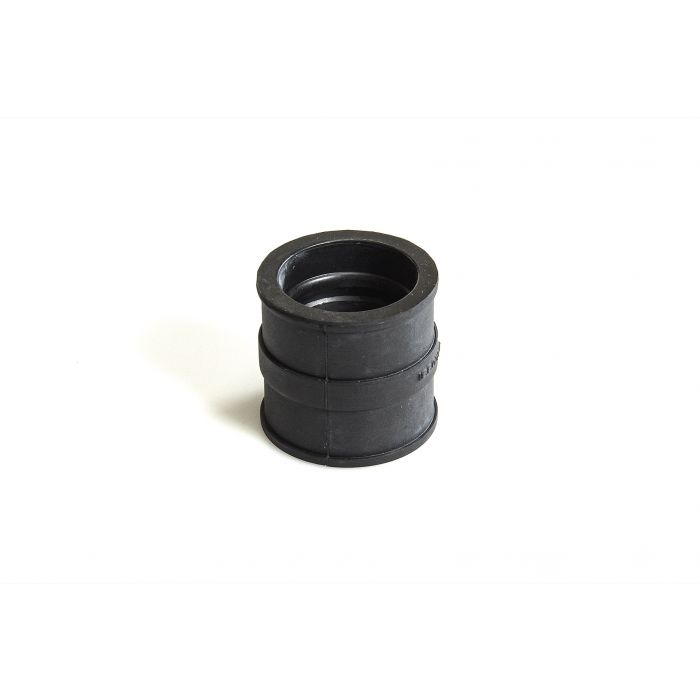

GUMA SESALNEGA KOLENA za carb. PHBL 20-25 B (37 mm)

14,03 € 11,50 €

DOBAVLJIVO

SKU

134579B

Ste našli isti Malossi izdelek ceneje? Mi vam ceno izenačimo!

Kontaktirajte nas

Preskoči na konec galerije slik

Preskoči na začetek galerije slik

Podrobnosti

INTAKE RUBBERS for CARBURETTOR

DWG TYPE A	DWG TYPE B	DWG TYPE C	DWG TYPE D

CODE	A = Ø INN. INTAKE SIDE (mm)	B = Ø INN. CARB. SIDE (mm)	DRAWING TYPE	D = Ø DIAPH. (mm)	C = HEIGHT (mm)	CARBURETTOR	Ø CARBURETTOR
13 6085B	24	25 - 1 groove	A	21	37	Dell’Orto PHBG B	15-21
1311128B	24	25 - 1 groove	A	21	32	Dell’Orto PHBG B	15-21
13 6110B	22	20	-	19	30	Dell’Orto PHBG B	15-19
13 4579B	29	30 - 1 groove	A	25	37	Dell’Orto PHBL B	20-25
13 4814B	30 - 1 groove	30 - 1 groove	B	25	37	Dell’Orto PHBL - PHBG	19-25
13 0399B	33 - 2 grooves	33 - 2 grooves	D	26	39,5	Dell’Orto VHB F	24-26
13 1433B	35 - 1 groove	35 - 1 groove	B	30	37	Dell’Orto PHBH B	29-30
13 1422B	35	35 - 1 groove	A	30	37	Dell’Orto VHSA	28-30
13 1012B	40 - 1 groove	44 - 2 grooves	C	32	36	Dell’Orto PHBE - PHF	30-34
13 0397B	44 - 2 grooves	44 - 2 grooves	D	36	37	Dell’Orto PHBE - PHF	32-36
13 0848B	44 - 1 groove	44 - 2 grooves	C	36	35	Bing, Mikuni	30-36
13 0929B	45 - 1 groove	45 - 1 groove	B	39	35	Bing, Mikuni Dell’Orto PHM	45

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use

Kompatibilno z

SKU	Naziv
1610690	carburettor kit phbl 25 bs reed cylinder 1st series for vespa et3 primavera 2t 125 cc
1610692	carburettor kit phbl 25 bs reed cylinder 1st series for vespa ets - pk - pk xl 125 cc
1610738	carburettor kit phbl 25 bs rub.crankcase for vespa special 50 cc
1610746	carburettor kit phbl 25 bs rub.crankcase for vespa et3 primavera 2t 125 cc
1610748	carburettor kit phbl 25 bs rub.crankcase for vespa pk 125 cc
1610847	carburettor kit phbl 25 bs reed crankcase for vespa et3 primavera 2t 125 cc
1610851	carburettor kit phbl 25 bs reed crankcase for vespa pk 125 cc
1610859	carburettor kit phbl 25 bs reed crankcase for vespa ets - pk xl 125 cc
1615907	carburettor kit phbl25 bs reed cylinder 2nd series for vespa et3 primavera 2t 125 cc
1615912	carburettor kit phbl 25 bs reed cylinder 2nd series for vespa ets - pk - pk xl 125 cc
204626	reed intake manifold kit (cylinder) phbl 25 for vespa special 50 cc
204709	intake manifold kit ø 24x28,6 with elastic fixing
204710	reed intake manifold kit (cylinder) phbl 25 1st series for vespa et3 125
204711	reed intake manifold kit (cylinder) phbl 25 1st series for vespa ets - pk / pk xl 125 cc
205459	reed intake manifold kit (crankcase) phbl 25 for vespa special 50 cc - et3 primavera 2t 125 cc
205460	reed intake manifold kit (crankcase) phbl 25 for vespa pk 50 - 125 cc
205461	reed intake manifold kit (crankcase) phbl 25 for vespa ets 125 cc - pk xl 125 cc / hp - xl 50 cc
2015908	reed intake manifold kit (cylinder) phbl 25 2nd series for vespa et3 125
2015911	reed intake manifold kit (cylinder) phbl 25 2nd series for vespa ets - pk / pk xl 125 cc
